Baliq qisqichlarini ishlab chiqaradigan iqtisodiy forklift

Uy / Barcha qo'shimchalar / Baliq qisqichlarini ishlab chiqaradigan iqtisodiy forklift

Baliq qisqichlarini ishlab chiqaradigan iqtisodiy forklift

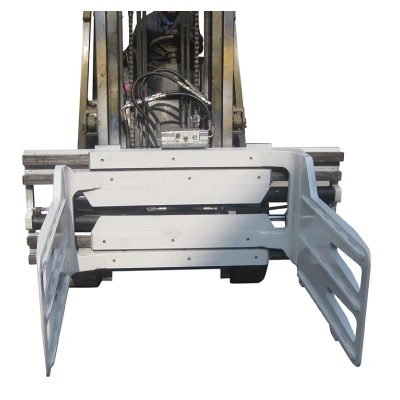

Material handling equipment lifting equipment bale clamp

economical forklift revoling bale clamp manufacturer

Ilovalar


-Bale clamp efficiently and economically handle nearly any type of baled products including cotton, wool, synthetic, textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales.

-High efficiency and economy to handle in without work platform condition.

Features & Advantages


-Proven durable T-beam arm aluminum frame construction.
-Superior arm-slide bearing for extended service life.
-Ribs provide secure grip and give driver good tip handling and bale spinning capabilities.
-Regenerative hydraulic valving for optimal arm speed.
-Excellent driver visibility.

forklift Bale clamp
economical forklift revoling bale clamp manufacturer

An important component of a product configuration


Hydraulic systems: the main control valve in the load to maintain valve adopts imported products; seals are imported products; high-pressure hose with cone seal, high-performance hose.

Structural parts: the left and right plates with Q460 high-performance steel plates, shaped by the overall pressure and correction.

Mechanical performance: Built-in lateral feature, you can also achieve clamping / opening and lateral function and good vision; additional oil line can meet the requirements of the two groups.

Application: can be effective and economic handling almost any form of software packages, such as cotton, wool, textiles, corrugated sheets, white paper, rags, hay, and other industrial debris.

atalog
Buyurtma raqami
Imkoniyatlar
@load
center
O'rnatish
Sinf
Ochilish
Qator
(mm)
Available
Forklift
Arm Height (mm)
Qurol
Length (mm)
Frame width
(mm)
Overall height
(mm)
Og'irligi
(Kg)
Samarali
Qalinligi
 (mm)
RJ19RT-A1
445-1670
1-2.5t
420
996
1040
796
580
198
RJ25RT-A1
600-1880
2-2.5t
460
1200
1010
769
750
259
RJ30RT-B1
560-1850
3-4,5t
460
1200
1010
769
750
259

Eslatma
1, haqiqiy yuk mashinasi / yuk ko'tarish qobiliyati forkliftdan olingan keng qamrovli zavoddir.
2, this is a matching increase in group 2 required additional forklifts require asphalt.

Videolar


Pressure for flow meter


ModelPressure value(Bar)Flow value(L/min)
LeastMaxLateral movementClamping action
LeastRecommendMaximumLeastRecommendMaximum
RJ**RT35180192638192638

Rotating torque requirements


ModelTezlikTorque
RJ19RT3.5r/[email protected]/min[email protected]
RJ25RT3.5r/[email protected]/min[email protected]
RJ30RT3.5r/[email protected]/min[email protected]

Tez ma'lumotlar


Kelib chiqishi joyi: Fujian, Xitoy (materik)
Brand Name: HUAMAI economical forklift revoling bale clamp manufacturer
Feature: Side shifting or rotating
Material: High strengthen steel
Spare parts: Same with Cascade
Certificates: ISO 9001:2000 & CE
Warranty: 12 months
Drive: Hydraulic control
Capacity: 2-6.5 tons
Mounting class: II-IV




,
