Mahsulot tavsifi
1. Applications:

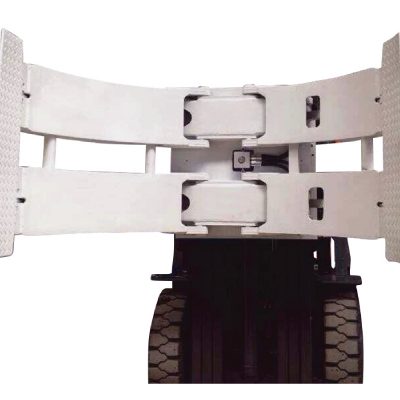

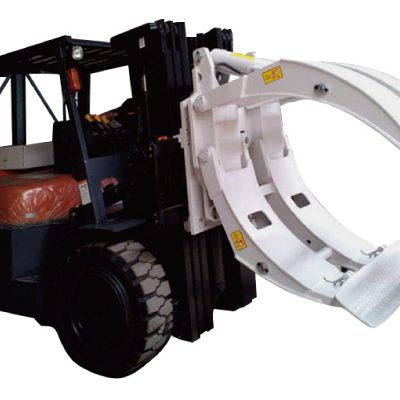

Forklift Paper Roll Clamp,as one kind of material handling equipment meeting the needs of industries from stevedoring to printing for damage free roll handling with maximum efficiency.
2. Features:
-Thin arm profile and smooth arm greatly eases roll breakout and permits close stacking.
-Continuous 360 degree rotation,any angle position of lock function,revolving positing 90degree or 180 degree.
-Hydraulic retention of cylinder valves is to ensure reliable lamping of long distance transportation.
3. Specifications of Paper Roll Clamp material handling equipment
Imkoniyatlar | SUM | Katalog | Turi | O'rnatish | O'rnatish | Uzoq | Qisqa | Uzoq | Og'irligi | Samarali | Gorizontal |
Qator | Buyurtma raqami | Sinf | Burchak | Qurol | Qurol | Qurol | Qalinligi | Markazi | |||
Qalinligi | Uzunlik | Qalinligi | Gravitatsiya | ||||||||
(kg) | (mm) | A (mm) | C (mm) | B (mm) | (kg) | ET (mm) | CGH (mm) | ||||
1200 | 410-1300 | RCF15F-013A | A | II | 0 ° | 790 | 580 | 330 | 354 | 135 | 221 |
1300 | 330-1150 | RCF15F-014A | A | II | 0 ° | 685 | 515 | 330 | 343 | 135 | 216 |
1100 | 450-1500 | RCF15F-015A | A | II | 1.5° | 890 | 680 | 330 | 435 | 150 | 270 |
1000 | 560-1600 | RCF15F-016A | A | II | 1.5° | 940 | 730 | 330 | 455 | 150 | 290 |
2000 | 250-1300 | RCP20F-001A | A | II | 0 ° | 825 | 570 | 45 | 677 | 197 | 287 |
2000 | 250-1300 | RCP20F-001B | B | III | 0 ° | 825 | 570 | 45 | 690 | 237 | 325 |
2000 | 630-1300 | RCF20F-002A | A | II | 0 ° | 825 | 570 | 45 | 667 | 197 | 282 |
2000 | 630-1300 | RCF20F-002B | A | III | 0 ° | 825 | 570 | 45 | 681 | 237 | 320 |
2000 | 250-1500 | RCP20F-003A | B | II | 0 ° | 955 | 775 | 95 | 751 | 197 | 283 |
2000 | 250-1500 | RCP20F-003B | B | III | 0 ° | 955 | 775 | 95 | 765 | 237 | 307 |
2000 | 530-1500 | RCF20F-004A | A | II | 0 ° | 955 | 775 | 95 | 744 | 197 | 280 |
2000 | 530-1500 | RCF20F-004B | A | III | 0 ° | 955 | 775 | 95 | 758 | 237 | 304 |
2000 | 630-1600 | RCF20F-005A / B | A | II / III | 0 ° | 955 | 775 | 95 | 755 | 183/216 | 301 |
2000 | 350-1600 | RCP20F-006A / B | B | II / III | 0 ° | 955 | 775 | 95 | 765 | 183/216 | 304 |
1700 | 680-1830 | RCF20F-007A | A | III | 0 ° | 1130 | 930 | 115 | 880 | 239 | 445 |
1700 | 380-1830 | RCP20F-008B | B | III | 0 ° | 1130 | 930 | 115 | 886 | 239 | 445 |
2700 | 330-1350 | RCP30F-009B | B | III | 0 ° | 850 | 570 | 65 | 759 | 198 | 272 |
2700 | 590-1350 | RCF30F-012B | A | III | 0 ° | 850 | 570 | 65 | 752 | 198 | 272 |
2700 | 250-1520 | RCP30F-011B | B | III | 0 ° | 955 | 685 | 50 | 830 | 198 | 307 |
2700 | 560-1520 | RCF30F-010B | A | III | 0 ° | 955 | 685 | 50 | 823 | 198 | 307 |
2000 | 250-1300 | RCS20D-001A | C | II | 0 ° | 825 | 560 | 45 | 717 | 197 | 269 |
2000 | 250-1300 | RCS20D-001B | C | III | 0 ° | 825 | 560 | 45 | 731 | 237 | 307 |
2700 | 250-1300 | RCS30D-002A | C | II | 0 ° | 845 | 570 | 70 | 854 | 203 | 277 |
2700 | 250-1300 | RCS30S-002B | C | III | 0 ° | 845 | 570 | 70 | 858 | 198 | 272 |
3500 | 250-1520 | RCP35F-001B | B | III | 0 ° | 1000 | 670 | 65 | 1190 | 218 | 320 |
3500 | 250-1520 | RCP35F-001C | B | IV | 0 ° | 1000 | 670 | 65 | 1199 | 218 | 320 |
3500 | 610-1520 | RCF35F-002B | B | III | 0 ° | 1000 | 670 | 65 | 1180 | 218 | 320 |
3500 | 610-1520 | RCF35F-002C | B | IV | 0 ° | 1000 | 670 | 65 | 1190 | 218 | 320 |
2700 | 360-1830 | RCP35F-003B | B | III | 0 ° | 1165 | 810 | 65 | 1289 | 218 | 353 |
2700 | 360-1830 | RCP35F-003C | B | IV | 0 ° | 1165 | 810 | 65 | 1298 | 218 | 353 |
2700 | 635-1830 | RCF35F-004B | A | III | 0 ° | 1165 | 810 | 65 | 1280 | 218 | 353 |
2700 | 635-1830 | RCF35F-004C | A | IV | 0 ° | 1165 | 810 | 65 | 1289 | 218 | 353 |
4000 | 250-1300 | RCP35F-007B | B | III | 0 ° | 875 | 575 | 65 | 1146 | 218 | 295 |
4000 | 250-1300 | RCP35F-007C | B | IV | 0 ° | 875 | 575 | 65 | 1155 | 218 | 295 |
4000 | 560-1300 | RCF35F-008B | A | III | 0 ° | 875 | 575 | 65 | 1137 | 218 | 295 |
4000 | 560-1300 | RCF35F-008C | A | IV | 0 ° | 875 | 575 | 65 | 1146 | 218 | 295 |
4100 | 250-1520 | RCP45F-001C | B | IV | 0 ° | 965 | 680 | 85 | 1294 | 198 | 310 |
4100 | 530-1520 | RCF45F-002C | A | IV | 0 ° | 965 | 680 | 85 | 1285 | 198 | 310 |
3400 | 360-1830 | RCP45F-003C | B | IV | 0 ° | 1105 | 815 | 85 | 1385 | 198 | 338 |
3400 | 660-1830 | RCF45F-004C | A | IV | 0 ° | 1105 | 815 | 85 | 1376 | 198 | 338 |
2700 | 450-2200 | RCP45F-005C | B | IV | 0 ° | 1305 | 915 | 85 | 1490 | 198 | 380 |
2700 | 850-2200 | RCF45F-006C | A | IV | 0 ° | 1305 | 915 | 85 | 1480 | 198 | 380 |
4500 | 250-1300 | RCP45F-007C | B | IV | 0 ° | 900 | 565 | 85 | 1242 | 198 | 284 |
4500 | 560-1300 | RCF45F-008C | A | IV | 0 ° | 900 | 565 | 85 | 1233 | 198 | 284 |
4. Options and Accessories:
Custom designed opening ranges.
Positioned short arm or fixed short arm.
Split long arm.
Special pads
Bizning afzalliklarimiz
Nega bizni ishonchli etkazib beruvchi sifatida tanlaymiz yoki biz bilan mahalliy diler sifatida ishlaymiz?
1. Tajribali texnik guruh, ko'proq professional xizmat
HUAMAI is made up of a team of members who have years of experience with European forklift trucks and its attachments.
2. Mahsulotning keng doirasi, tayyorlangan dizayni, to'liq echimni ta'minlaydi
HUAMAI tezda keng qamrovli gidravlik va mexanik qo'shimchalar ishlab chiqarishga ixtisoslashgan yirik kompaniyaga aylandi. Shlangi qo'shimchalarning asosiy toifalariga aylanadigan tur, toymasin qo'l turi, yonma-yon siljuvchi / mentli tip, maxsus maqsadlar turi va boshqalar kiradi.
3. Agar agentlik / diler bo'lsa, ustuvor yordam
If you a local dealer, can achieve HUAMAI agent policy support, including fast delivery time, competitive price and accessories support, ect.
4. O'z zavod, raqobatbardosh narx
Fabrikamız 10000 kvadrat metr maydonni o'z ichiga oladi, zamonaviy ishlab chiqarish uskunalari va jihozlari bilan to'liq ta'minlangan. Miqyosli ishlab chiqarish va hech qanday vositachilar xarid narxini tejashga qodir emas.
5. Bizning yaxshi ishlashimizni isbotlovchi mijozimizning ovozi va ovozi
Tez ma'lumotlar
Kelib chiqishi joyi: Fujian, Xitoy (materik)
Tovar nomi: HUAMAI
Model Number: HUAMAI-Hydraulic-1.7-4.5T Paper Roll Clamp
Imkoniyatlar: 1700-4500kg
Roll range: 250-1830mm
Mounting class: II/III/IV
Long arm length: 825-1305mm
Short arm length: 560-915mm
Long arm thickness: 45-115mm
Weight: 677-1490kg
Yuzaki ishlov berish: Bo'yalgan
Asosiy qismlar: jahon miqyosida
Kafolat: 12mm yoki 2000 ish vaqti
