Shlangi forklift quvurlar uchun qisqich

Uy / Barcha qo'shimchalar / Shlangi forklift quvurlar uchun qisqich

Shlangi forklift quvurlar uchun qisqich

Xususiyatlari


1.Hydraulic system: imported original fuel tank check valve; seal products are imported, high-pressure hose with cone seal imports of high-performance hose.
2.Mechanical properties: the external lateral features, plug-fork be used in conjunction to achieve the forward hold folders, adding in each tank check valve, can achieve long packing, ensure that the work or the plastic Pipe burst of safety.
3.An important component of a product application and configuration, Competitive Quality
4.Lubrication system at active joints can ensure durable usage life.
5.Haydovchining ko'rinishi.

Texnik xususiyatlari


Katalog buyurtma raqamiImkoniyatlar

(kg)

O'rnatish klassiRotator

Fork Mounting

Height of Faceplate

A

(mm)

Tilt Forward /Tilt Backward



(mm)

Raker Opening

C

(mm)

Raker Width

D

(mm)

Og'irligi

(kg)

Samarali

Qalinligi

ET

(mm)

Horiz

ontal Center of Gravity

CGH

(mm)

SPC30D-011B[email protected]IIIIII130045°/12°-180/1600355880385292
SPC45D-002B[email protected]IIIIII165045°/12°-180/16003551020401305
SPC45D-002C[email protected]IVIII165045°/12°-180/16003551060401315

Eslatma


Forkliftning haqiqiy hajmini va yuk mashinasini ishlab chiqaruvchidan oling,
Ikkita to'plam forkliftda qo'shimcha yog 'davri kerak
Iltimos, HUAMAI kompaniyasining sotuvlariga murojaat qiling

Shlangi oqim va bosim


ModelGidravlik oqim (L / min)Rec Shlangi oqim (L / min)Maks.Gidravlik oqim (L / min)Min. Hydraulic Pressure(Bar)Maks. Shlangi bosim (bar)

STP30D

20

40

60

35

160

STP40D

38

57

91

35

160

Option


Lengthen Bar Carriage

Ilova

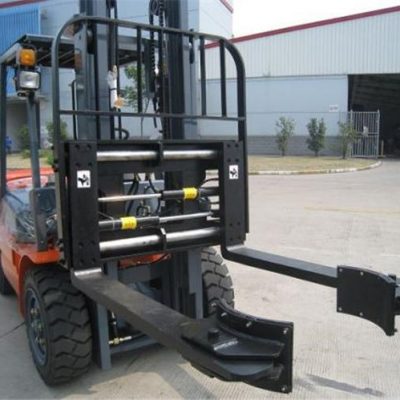

Steel pipe clamp can efficiently handle and stack hard, cylindrical objects under normal temperature without pallet. Widely used in construction, logistics industries for handling the steel pipe etc, the functions of tipping and withhold can greatly improve the flexibility of the forklift and handling efficiency

Tez ma'lumotlar


Kelib chiqishi joyi: Fujian, Xitoy (materik)
Tovar nomi: HUAMAI
Model Number: SPC30D-011B
Product Name: Steel pipe clamp for forklift
Type: SPC30D-011B
O'rnatish klassi: III
Opening Range: 900-1500mm
Height of Faceplate A(mm): 1300mm
Tilt Forward /Tilt Backward (mm): 45°/12°
Raker Opening C(mm): -180/1600mm
Raker Width D(mm): 355mm
Weight (kg): 880kg
Effective Thickness ET(mm): 385mm
