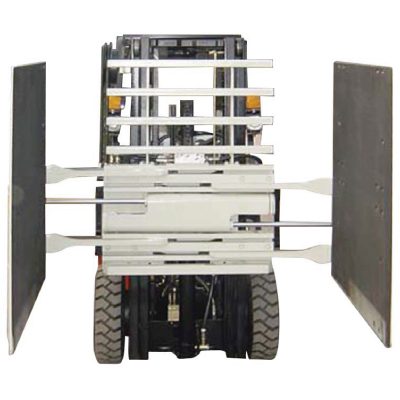

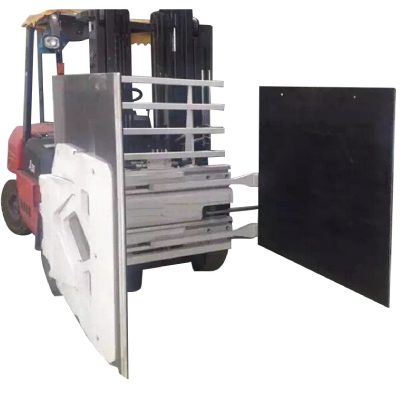

Forkliftni biriktirish uchun karton qisqichlar

Mahsulot tavsifi

---

1. Function And Applications

Designed for the warehousing, beverage and electronics industries, carton clamps allow palletless handling,

and save money on pallet purchasing, maintenance. Also improve warehouse space utilization.

2. Xususiyatlar

Alyuminiy ramka konstruksiyasi

Optimal qo'l tezligi uchun regenerativ gidravlik valf

-Superior arm-slide bearing for extended service life

Vulcanized rubber pads design, economically

-Excellent driver visibility

Imkoniyatlar @  Yuklash markazi	Item Yo'q.	O'rnatish Sinf	Ochilish Qator	Qurol Balandligi	Qurol Uzunlik	Ramka Kengligi	Vertikal Markaz ning Gravitatsiya	Og'irligi	Samarali Qalinligi	Gorizontal Markazi Gravitatsiya
							CGV		ET	CGH
			(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	(mm)	(mm)
1150@600	CCS15D-001A	Ⅱ	380-1530	1220	1220	940	320	650	127	439
1600@510	CCS20D-002A	Ⅱ	560-1930	1220	1065	1040	325	644	127	422
1600@535	CCS20D-003A	Ⅱ	560-1930	1220	1170	1040	325	651	127	427
1600@585	CCS20D-004A	Ⅱ	560-1930	1220	1220	1040	315	696	127	447
1600@610	CCS20D-005A	Ⅱ	560-1930	1220	1220	1040	320	705	127	450
1400@710	CCS20D-006A	Ⅱ	560-1930	1220	1420	1040	315	770	127	483
1450@685	CCS20D-007A	Ⅱ	560-1930	1525	1370	1040	380	824	127	485
2300@510	CCS30D-008B	Ⅲ	535-1850	1525	1015	1015	450	899	152	485
2300@535	CCS30D-009B	Ⅲ	535-1850	1525	1066	1015	450	906	152	485

3.Oksiyalar

1)Four-position pressure regulator valve

2)Pad height extension

3)Heightening load backrest

Bizning afzalliklarimiz

Nega bizni ishonchli etkazib beruvchi sifatida tanlaymiz yoki biz bilan mahalliy diler sifatida ishlaymiz?

1. Tajribali texnik guruh, ko'proq professional xizmat
HUAMAI is made up of a team of members who have years of experience with European forklift trucks and its attachments.

2. Mahsulotning keng doirasi, tayyorlangan dizayni, to'liq echimni ta'minlaydi

HUAMAI tezda keng qamrovli gidravlik va mexanik qo'shimchalar ishlab chiqarishga ixtisoslashgan yirik kompaniyaga aylandi. Shlangi qo'shimchalarning asosiy toifalariga aylanadigan tur, toymasin qo'l turi, yonma-yon siljuvchi / mentli tip, maxsus maqsadlar turi va boshqalar kiradi.

3. Agar agentlik / diler bo'lsa, ustuvor yordam

If you a local dealer, can achieve HUAMAI agent policy support, including fast delivery time, competitive price and accessories support, ect.

4. O'z zavod, raqobatbardosh narx

Fabrikamız 10000 kvadrat metr maydonni o'z ichiga oladi, zamonaviy ishlab chiqarish uskunalari va jihozlari bilan to'liq ta'minlangan. Miqyosli ishlab chiqarish va hech qanday vositachilar xarid narxini tejashga qodir emas.

5. Bizning yaxshi ishlashimizni isbotlovchi mijozimizning ovozi va ovozi

Tez ma'lumotlar

---

Kelib chiqishi joyi: Fujian, Xitoy (materik)
Tovar nomi: HUAMAI
Capacity: 1150-2300kg
Opening range: 380-1930mm
O'rnatish klassi: II / III
Arm height: 1220-1525mm
Arm length: 1015-1420mm
Frame width: 940-1040mm
Self weight: 644-906kg
Yuzaki ishlov berish: Bo'yalgan
Kafolat: 12mm yoki 2000 ish vaqti
Asosiy qismlar: jahon miqyosida
